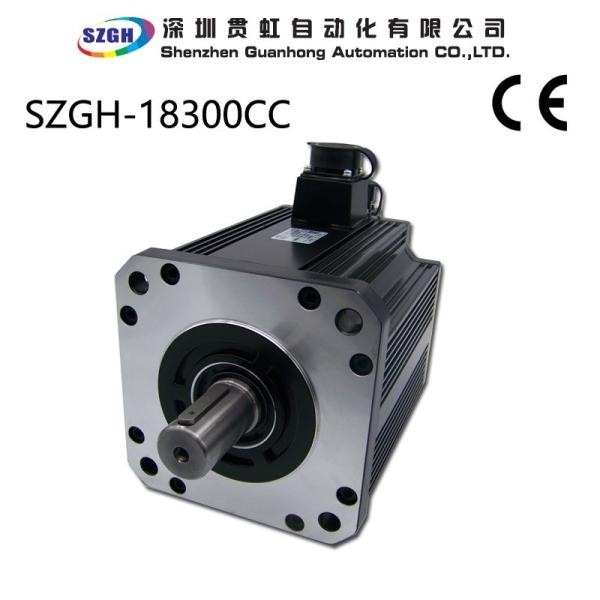

3.0KW 19NM High Torque 1000RPM high performance CNC AC Servo Motors

Product Categories

Shenzhen Guanhong Automation Co., Ltd.

Contact Now

3.0KW 19NM High Torque 1000RPM high performance CNC AC Servo Motors

Name: 30KW 19NM High Torque 1000RPM high performance CNC AC Servo Motors
Brand: SZGH
Price: 1 USD

China 3.0KW 19NM High Torque 1000RPM high performance CNC AC Servo Motors wholesale

Brand Name : SZGH

Model Number : SZGH-18300CC

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1 set

Price : negotiation

Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard

Supply Ability : 300 sets per month

Delivery Time : within 3-5 days upon receipt of full payment

Packaging Details : Packaged with International Standard

Frame Size : 180mm

Rated Power : 3.0KW

Continuous Torque : 19NM

Peak Torque : 47NM

Rated Speed : 1500RPM

Rated Current : 12A

Rated Voltage : 220VAC

Rotor Inertia : 3.8 kg*m^2*10e-3

Encoder Resolution : 2500PPR

Diameter of Axle : 35mm

weight : 20.5kg

Contact Now

3.0KW 19NM High Torque 1000RPM high performance CNC AC Servo Motors

SZGH-18300CC is 3.0KW 19NM 1500RPM ac servo motor , high speed, high precision, low motor noise and low heating performance, while at the cost of normal servo systems.

There is one servo driver,SZGH-501,that can control 3.0KW servo motors.

Application

CNC Machinery,printing equipment, packaging equipment, textile equipment, laser processing equipment,

robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other

requirements of the relatively high equipment.

3.0KW 19NM High Torque 1000RPM high performance CNC AC Servo Motors

Specifications

3.0KW 19NM High Torque 1000RPM high performance CNC AC Servo Motors

Dimension

3.0KW 19NM High Torque 1000RPM high performance CNC AC Servo Motors

We Can Support Total CNC Control System!!!

3.0KW 19NM High Torque 1000RPM high performance CNC AC Servo Motors
